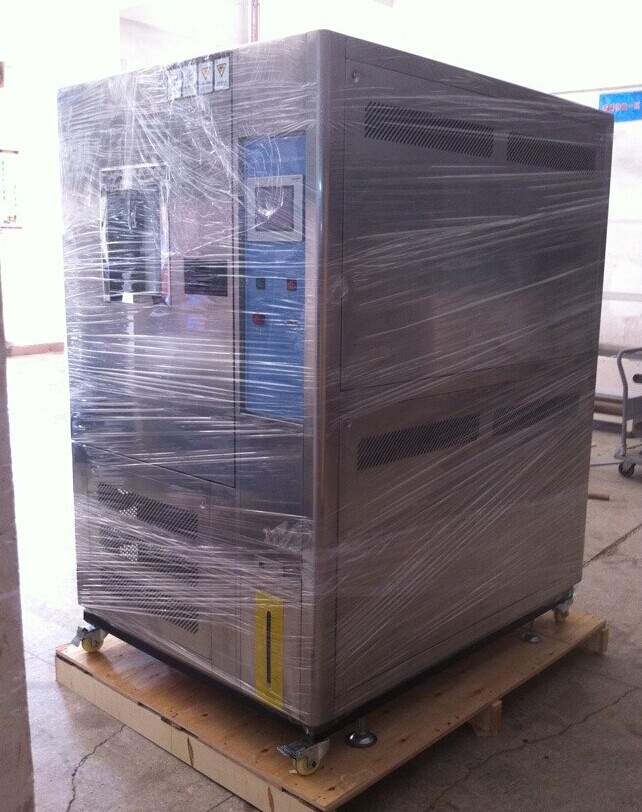

LCD Touch Screen Controller Programmable Temperature Humidity Climatic Chamber 225L
Related Standard:
IEC600628 2-1/2/3/30, GB/T2423/5170/10586, JIS C60068, ASTM D4714, CNS3625/12565/12566
Uses:
This equipment can simulate different environment condition. It's appropriate for testing material performance, such as resist heat, resist dry,resist humidity and resist cold. That can define performance of material.
Function and Features:
1) The test machine is mainly used in testing the adaptability of electronics, electrical appliances, food, automobile, rubber and plastic, metal and other products, parts and materials in the high and low temperature alternating hot and humid environment when storage, transport and using；
2) It is an reliable test equipment for all kinds of electronic, electrical, electronics, plastics raw materials and devices to do testing such as cold, heat, moisture, resistance to dry and the quality control ；
3) Especially suitable for optical fiber, LCD, crystal, inductor, PCB, batteries, computers, mobile phones, rubber, plastics and other product.
4) The new perfect design, the appearance of high texture level, the system extracts Japan, West Germany, the essence of design and manufacture of advanced technology.
5) Balanced temperature humidity control system (BTHC), to PID mode control SSR, so that heated humidification system was equal to heat loss capacity, it could be used long-term stability;
6) All-capillary, automatic load capacity adjustment system technology, more expansion valve system more stable and reliable, precise temperature and humidity control, heating and cooling rate of rapid, steady, uniform, saving valuable time for users.
Specifications:
| Model | LY-2225 |
| Inner Size W×H×D(cm) | 60×70×60 |
| External Size W×H×D(cm) | |
| Volume(L) | 252 L |
| Temp&Humi Control Range | Temp. Range: A: -20℃～+150℃ humidity range: 20%~98% B: -40℃～+150℃ C: -70℃～+150℃ (Other temperature and humidity range can be customized) |
| Temp&Humi Fluctuation | ±0.5℃；±2.5%RH |
| Temp&Hum Departure | ±0.5℃-±2℃；±3%RH(>75%RH); ±5%RH(≤75%RH) |
| Controller Resolution | ±0.3℃；±2.5%RH |
| Controller Brand | Korean TEMI880 |
| Material | Inwall | SUS 304# steel plate |
| Housing | SUS 304# steel plate surface fog processed |
| Heat Insulator | resistance to high temperature, high chlorine acid b vinegar foam insulation materials |
| Aie Circulation Way | centrifugal fan-broadband type force air circulation |
| Refrigeration Way | cascade type multiple refrigeration |
| Refrigerater | fully enclosed piston compressor Taikang France |
| Refrigerants | R4O4Aor American dupont environmental protection cold media(R23+R404) |
| Condensing Way | Air-cooling |
| Heater | nickel chrome heating wire heater |
| Humidifier | semi-closed steam |
| Water Supply Way | automatic cycle water supply |
| Standard Accessaries | *50mm test hole on the left............................................................1PCS *PL inner lamp................................................................................1PCS *Adjustable clapboard.....................................................................2PCS *Humidity cloth...............................................................................1Bag *Fuses..............................................................................................3PCS *Power line.......................................................................................1PCS *Software CD....................................................................................1PCS *Operation manual.............................................................................1PCS |
| Safety Devices | *Leakage current *Overload *Compressor overload *Over temperature *Ultra-wet/dry *Humidification temperature protection. |
| Power | 3phase 380V AC±10% 50/60Hz |
